Disposable Low Pressure Drop Extended Surface Furnace Filter With Wet-Laid Cardboard

Applications:

Tha Klair Furnace Filter is a medium efficiency extended surface pleated panel filter, engineered to provide higher initial efficiencies and overall superior performance than standard pleated filters.

The Filter carries a MERV 7 peformance rating in accordance with ASHRAE Test Stanard 52.2-2007.

The MERV 8 make the filter an excellent upgrade from disposable filters and standard MERV 6 or 7 rated pleated filters. It is the best selection in applications such as hospitals, laboratories, pharmaceutical plants, commercial office buildings, and in any system in which a higher degree of indoor air quality is required.

Parameters:

• Media: Progressive density Synthetic fibre
• Frame: Water-resistance cardboard; GI; AI
• Efficiency range from MERV 8 ASHRAE 52.2 1999
• Average Arrestance: 90%@5μm;
• Initial resistance: 45 Pa
• Recommended final pressure drop : 250Pa
• Humidity resistance: 90%RH
• Max Temperature: 80 ℃
• DIN 53438 Flammability: F1
• UL 900 Standard : Class 2
• Max.air flow rate: 125% of rated air flow
• Media color available: Blue; White; Green
• Filter standard depth available 1 inch (21mm); 2 inch(46mm) and 4 inch(96mm)
• Galvanized supporting grid to ensure strength construction in diamond or square shape.

Specifications:

Competitive Advantage:

• Extended surface filtration area.
• Low initial resistance to airflow.
• High dust holding capacity.
• Standard and High Capacity models

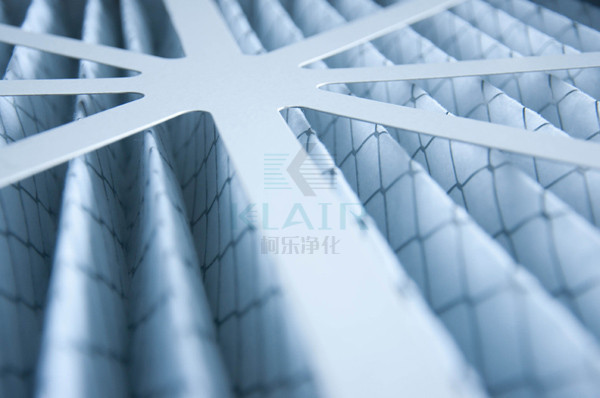

Product Picture:
