Klair Factory Sell Large Air Volume Mini Pleat Glassfiber V Cell Compact Air Filter

Applications:

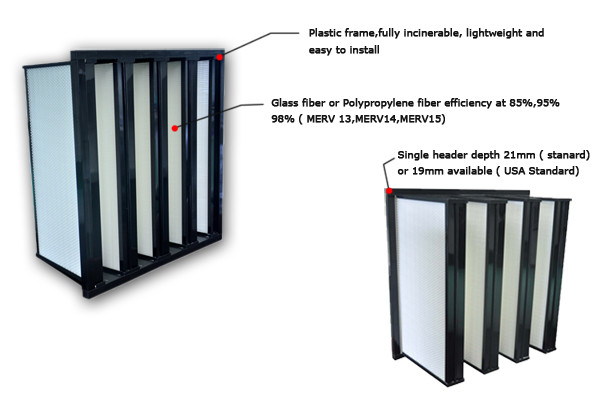

The FloMax Compact Air Filters is made of a multiplier mini-pleat media packs assembled in a V-shaped configuration, fully incerable Plastic housing. The filter is designed for use in high air flow applications up to 4000 m3/h (2400 cfm). Its high capacity designe provide competitive advantages to other conventional HEPA Fitler of the same size; fewer filters are required to handle the same volume of air in the systems, which reduces costs, installation space and time.

Specifications:

Other sizes is available!

Description:

• Media: Polypropylene or glass fibre paper
• Separator:Hot-melt beads
• Frame: GI;Plastic
• Efficiency range from F9 ,H10,H11,H13(EN 1822)
• Initial resistance: 110 Pa
• Recommended final pressure drop : 600Pa
• Humidity resistance: 100%
• Max Temperature: 80 ℃
• Sealant: Polyurethane rubber PU
• DIN 53438 Flammability: F1
• UL 900 Standard : Class 2
• Max.air flow rate: 125% of rated air flow
• Gasket: one piece half round continuous gasket
• Available in Box or Single flange type.

Competitive Advantage:

• Ensure a long operation reliability and high dust holding capacity
• High air flow rates, up to 5000 m3/hr
• Low initial resistance.
• Tested in accordance with EN 1822
• Low energy consumpation

Details:

KLAIR is a new brand-motivated subsidiary of VTF Group, who is a one of earliest and leading air filters manufacturer and clean air solutions provider in China with two production facilities in north and south of China since the year 2008.

The group, headquartered in Guangdong,China, has around 65 employees and sales close to CNY 50 millions , International market account for more than 40 precent of the sales.

In the the past decade, we spare no efforts to provide clean air solutions to ensure clean air for health and processing performance to hundred of industries and commercial application, such as Pharmaceutical, Semi-conductor, Micro-electronic, Optical,Food & Beverage,Hospital,Shopping mall,labs, Museums etc.

We introduced the best-in-class mini-pleated machine ,endless gasket foam machine , DOP test system ,and We co-operate with American HV Media Company, which we aim to provide equivalent quality product to the International brand.

We introduced Full-Automation Bending Machine and Full-Automation Punching machine to ensure the precision of metal works.

We has built a complete QA system (ISO9001:2000) the entire process from the design and production of air filter products to the performance test of using advanced measuring devices and delivery.

We promise you to do our best for industry development and customer satisfaction at present and in the future and hope that our homepage can be helpful to your excellent selection and interest.

As we pursue “ CLEAN AIR MATTERS”, We are international brand follower, but will benefit you in this field.
